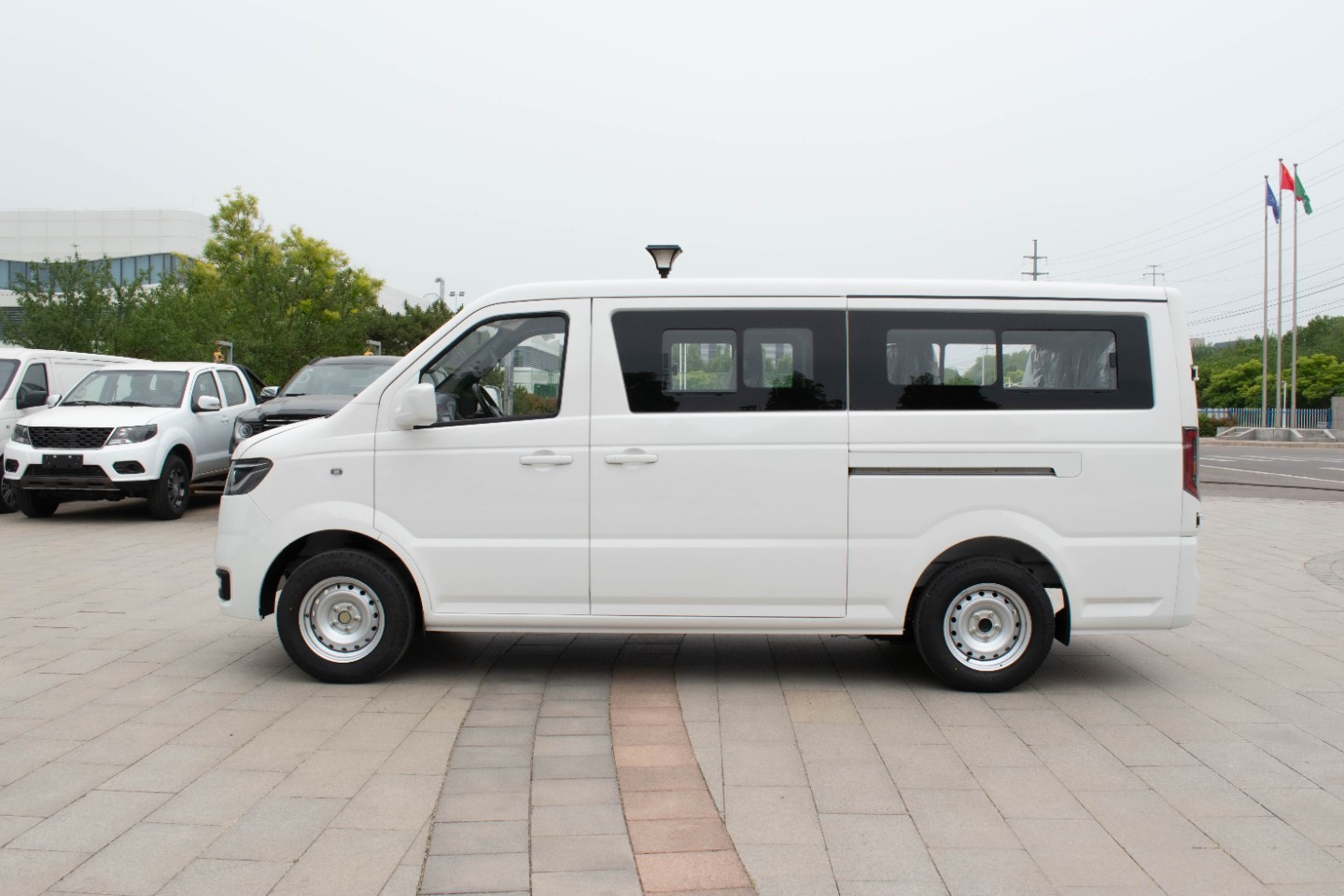

Electric, left- and right-hand drive, small truck, small passenger car, logistics vehicle

Vehicle model  车辆型号		SUNLONG6540BEV（右舵RHD）
length*width*height  长宽高(mm)		5380*1880*2285
Wheelbase (mm)  轴距  (mm)		3110
Seats座位数		14
Battery type 电池类型		磷酸铁锂(LIP)
Battery Capacity(kWh) 装载电量(kWh)		53.38
Battery management system  电池管理系统		/
Motor rated/peak power (kw) 电机额定功率		50kw
Voyage course NEDC NEDC续驶里程(km)		220
Charging equipment  充电配置		快慢充（国标6.6KW慢充）Fast and slow charging (GB 6.6KW slow charging)
Tire 轮胎		195R16C radial tire 195R16C子午线轮胎
Brake system 制动系统		disc/ disc, ABS+EBD, vacuum booster system                                                                                  前盘后盘,ABS+EBD,真空助力系统
Suspension 悬挂		front double wishbone independent suspension/                                                                                         rear variable rate leaf spring （four pcs)                                                                                                                        前双横臂式独立悬架/后变刚度板簧（四片）
Steering system 转向系统		Electric power steering power                                                                                                               EPS
Rear axle                                                                             后桥		Torsional Liliang type Casting rear axle 扭力梁式铸造后桥

项目Enterprise		参数Parametric	整车正照             整车侧照
外观尺寸Exterior Dimensions	长（mm）Length	5960
	宽（mm）Width	2010
	高（mm）Height	2350
	轴距（mm）Wheelbase	3360
	前/后轮距（mm）Front/Rear tread	1620/1580
	前悬/后悬（mm）Front/Rear overhang	1150/1370
质量参数 Quality parameters	整备质量（kg）Curb weight-带货箱	/
	最大总质量（kg）GVM	4500
座位数  seating	最大乘员数(seat) Maximum passengers	2	底盘二维布置图
通过性能Through performance	轴荷（kg）Axle load	/
	接近角/离去角（°）Angle of approach/Departure	24/26
	最小离地间隙（mm）Minimum ground clearance	240
	最小转弯直径（m）Minimum Turning Diameter	9
动力性能Mechanical capability	最高车速（km/h）Maximum speed	100
	最大爬坡度（°） Cruise mileage	14
	续航里程(km) Range	300
	动力类型  Power type	纯电
	电机功率额定功率/峰值功率（KW）	60/120（KW）
	电机功率额定扭矩/峰值扭矩（KW）	150/360 N.m
	速比	12.5
	动力类型  Power type	纯电

SUNLONG U1右舵客运版配置表
Dimensions and Weight 尺寸及重量
1	Overall Lenth x Width x Height (mm) 整车尺寸	4890×1715×1990	豪华造型、LED大灯，前后申龙标
2	Wheelbase (mm) 轴距	3050
3	Max Speed (km/h) 最高车速	90
4	Curb Weight 整备质量	1750 kg
5	Gross Weight 满载质量	3150 kg
7	Tyre Size 轮胎规格	195/70 R15LT-12PR
Dynamic Performance 动力系统
8	Battery Chemistry 电池类型	Lithium iron phosphate 磷酸铁锂
9	Battery Capacity 电池容量	46.368kWh
10	WLTC Range                                              WLTC续航里程	220 km
11	Charging Time 充电时间	80 Mins                                                                                                                             80分钟
12	Battery Electrical Heating 电池加热	Yes
13	Energy Recycling 能量回收	Yes
14	Motor Type 电机类型	Permanent Magnet Synchronous Motor 永磁同步电机
15	Rated/Peak Power 额定功率/峰值功率	40 /80 kW
16	Rated/Peak torque 额定扭矩/峰值扭矩	110/256 N.m
17	Driver Form 驱动形式	Rear Motor, Rear Drive 后置后驱
18	Battery Pack/Motor/MCU Warranty 电池和电机电控质保	5 Years Or 200,000 KM 五年或20万公里
Body System 车身系统
19	Body Structure 车身结构	Unibody 全承载式
20	Double-opening Rear Tail Door 双开式后背门	Yes
22	Left 、right Sliding Door 左、右滑门	Yes
23	seating capacity 座椅数量	10+1+1， 2+3+3+4	乘客座椅高靠背座椅、靠背不可调，乘客座椅两点式安全带、正副司机座三点式未系报警安全带
24	Fabric Driver Seat 驾驶员织物座椅	4 directions seat adjustable /4向调节
25	Front Electric Window 前电动车窗	Yes
26	Toolkit 随车工具	Yes
Chassis System 底盘系统
27	Suspension Type(Front/Rear) 悬架类型(前/后)	MacPherson independent suspension/Non-independent leaf spring suspension 麦弗逊式独立悬架/非独立式钢板弹簧悬架
28	Brake System(Front/Rear) 制动系统(前/后)	Disk/Drum 盘式/鼓式
29	Brake Type 制动形式	Hydraulic Brake 液压制动
30	Brake Assistance Type 制动助力	Vacuum Booster 真空助力
31	ABS+EBD                                                 防抱死刹车系统+电子制动力分配系统	Yes
32	EPS(Electric Power Steering) 电动助力	Yes
33	Parking brake type                                    驻车制动形式	Mechanical 机械式
34	ESC+HAC                                                          电子稳定控制系统	Yes
35	Airbag                                                     安全气囊	No
Electrical System 电器系统
36	Seatbelt Warning Device 安全带未系提醒	Yes
37	Reversing Radar 倒车雷达	Yes
38	Reversing Video 倒车影像	CCTV system, 7-inch screen, 250G storage capacity and 3 camaras(front view, rear view and reversing monitor, cargo box interior view)                                                                     CCTV系统，7英寸屏，250G存储容量，3摄像头(前路况&后路况/倒监&货厢内部视角)
39	Security Lock(Center & Remote) 安全锁(中控锁+遥控钥匙)	Yes
40	Multi-Function Pointer Lcd Dashboard 多功能液晶指示仪表盘	Yes
41	USB+Charging Interface USB+充电接口	Yes
42	Lens headlamp and LED daytime running lamp 透镜大灯&LED日间行车灯	Yes
43	Air Conditioner 空调	Yes	单冷空调+PTC加热
44	Predestrian Warning System 行人警示系统(低速提示音)	Yes
45	倒车镜带转向灯Reverse mirror with turn signal	NO
46	乘客区地板为花纹铝板The passenger area floor is made of patterned aluminum panels	Yes
47	铝合金钢圈Aluminum alloy steel ring	Yes
48	配3.3KW或6.6KW便携式充电器Portable Charger 3.3KW & 6.6KW come together right	Yes

SUNLONG U2右舵客运版配置表
Dimensions and Weight 尺寸及重量
1	Overall Lenth x Width x Height (mm) 整车尺寸	4920×1715×2035	豪华造型、LED大灯，前后申龙标
2	Wheelbase (mm) 轴距	3050
3	Max Speed (km/h) 最高车速	90
4	Curb Weight 整备质量	1780 kg
5	Gross Weight 满载质量	3150 kg
7	Tyre Size 轮胎规格	195/70 R15LT-12PR
Dynamic Performance 动力系统
8	Battery Chemistry 电池类型	Lithium iron phosphate 磷酸铁锂
9	Battery Capacity 电池容量	50.232kWh
10	WLTC Range                                              WLTC续航里程	250 km
11	Charging Time 充电时间	80 Mins                                                                                                                             80分钟
12	Battery Electrical Heating 电池加热	Yes
13	Energy Recycling 能量回收	Yes
14	Motor Type 电机类型	Permanent Magnet Synchronous Motor 永磁同步电机
15	Rated/Peak Power 额定功率/峰值功率	40 /80 kW
16	Rated/Peak torque 额定扭矩/峰值扭矩	110/256 N.m
17	Driver Form 驱动形式	Rear Motor, Rear Drive 后置后驱
18	Battery Pack/Motor/MCU Warranty 电池和电机电控质保	5 Years Or 200,000 KM 五年或20万公里
Body System 车身系统
19	Body Structure 车身结构	Unibody 全承载式
20	Double-opening Rear Tail Door 双开式后背门	Yes
22	Left 、right Sliding Door 左、右滑门	Yes
23	seating capacity 座椅数量	10+1+1， 2+3+3+4	乘客座椅高靠背座椅、靠背不可调，乘客座椅两点式安全带、正副司机座三点式未系报警安全带
24	Fabric Driver Seat 驾驶员织物座椅	4 directions seat adjustable /4向调节
25	Front Electric Window 前电动车窗	Yes
26	Toolkit 随车工具	Yes
Chassis System 底盘系统
27	Suspension Type(Front/Rear) 悬架类型(前/后)	MacPherson independent suspension/Non-independent leaf spring suspension 麦弗逊式独立悬架/非独立式钢板弹簧悬架
28	Brake System(Front/Rear) 制动系统(前/后)	Disk/Drum 盘式/鼓式
29	Brake Type 制动形式	Hydraulic Brake 液压制动
30	Brake Assistance Type 制动助力	Vacuum Booster 真空助力
31	ABS+EBD                                                 防抱死刹车系统+电子制动力分配系统	Yes
32	EPS(Electric Power Steering) 电动助力	Yes
33	Parking brake type                                    驻车制动形式	Mechanical 机械式
34	ESC+HAC                                                          电子稳定控制系统	Yes
35	Airbag                                                     安全气囊	No
Electrical System 电器系统
36	Seatbelt Warning Device 安全带未系提醒	Yes
37	Reversing Radar 倒车雷达	Yes
38	Reversing Video 倒车影像	CCTV system, 7-inch screen, 250G storage capacity and 3 camaras(front view, rear view and reversing monitor, cargo box interior view)                                                                     CCTV系统，7英寸屏，250G存储容量，3摄像头(前路况&后路况/倒监&货厢内部视角)
39	Security Lock(Center & Remote) 安全锁(中控锁+遥控钥匙)	Yes
40	Multi-Function Pointer Lcd Dashboard 多功能液晶指示仪表盘	Yes
41	USB+Charging Interface USB+充电接口	Yes
42	Lens headlamp and LED daytime running lamp 透镜大灯&LED日间行车灯	Yes
43	Air Conditioner 空调	Yes	单冷空调+PTC加热
44	Predestrian Warning System 行人警示系统(低速提示音)	Yes
45	倒车镜带转向灯Reverse mirror with turn signal	NO
46	乘客区地板为花纹铝板The passenger area floor is made of patterned aluminum panels	Yes
47	铝合金钢圈Aluminum alloy steel ring	Yes
48	配3.3KW或6.6KW便携式充电器Portable Charger 3.3KW & 6.6KW come together right	Yes	右舵小卡配置表（参考） Right rudder small card configuration table (reference)
			一、整车基本参数 Vehicle basic parameters
			项目			item	参数	argument	备注	remark
			基本参数      Basic parameter	外形尺寸 Overall dimension	长 long(mm)	long(mm)	4500	4500
					宽 wide(mm)	wide(mm)	1655	1655
					高 high(mm)	high(mm)	1965	1965
				货厢尺寸Cargo size	长 long(mm)	long(mm)	2570	2570
					宽 wide(mm)	wide(mm)	1590	1590
					高 high(mm)	high(mm)	330	330	栏板	Rail board
				轴距 wheelbase (mm)		wheelbase (mm)	2900	2900
				悬长 Overhang length	前 front(mm)	front(mm)	525	525
					后 back(mm)	back(mm)	1075	1075
				轮距 Wheel track(mm)	前轮 Front wheel	Front wheel	1450	1450
					后轮 rear-wheel	rear-wheel	1435	1435
			质量参数 Quality parameter	整备质量(kg)		curb weight(kg)	1400	1400
				最大允许总质量(kg)		loaded mass(kg)	2570	2570
			性能参数 Performance parameter	最高车速(km/h)		Maximum speed	90	90
				最小转弯直径(m)		Minimum turning diamete(m)	10	10
				最大爬坡度(≥)		Maximum gradient (≥)	20.00%	20.00%
				最大驻坡度(≥)		Maximum standing grade (≥)	20.00%	20.00%
				NECD工况法续航里程（km）		NECD mode Range (km)	220	220
			二、灯光配置 Lighting arrangement
			序号 Serial number	项目		item	配置	disposition	备注	remark
			1	远近光灯（卤素）		Light lamp (halogen)	√	√	灯光调节开关	Light regulating switch
			2	车前、后雾灯		Front and rear fog lights	√	√
			3	刹车灯		Brake light	√	√
			4	阅读灯		Reading light	√	√
			5	牌照灯		License plate light	√	√
			三、玻璃/后视镜 Glass/rear view mirror
			序号 Serial number	项目		item	配置	disposition	备注	remark
			1	前雨刮系统		Front wiper system	√	√
			2	电动车窗升降		Electric window lift	√	√
			3	车窗除霜除雾		Defrost and fog the Windows	√	√
			4	电动外后视镜调节		Electric external rearview mirror adjustment	√	√	外部白色，带侧转向灯	Exterior white with side turn signal
			5	内后视镜		Inside rear-view mirror	√	√
			四、安全配置  Security configuration
			序号 Serial number	项目		item	配置	disposition	备注	remark
			1	安全带未系提醒		Seat belt not fastened reminder	√	√	主驾	Chief driver
			2	收音机		radio	√	√
			3	ABS		ABS	√	√
			五、车辆内部配置
			序号 Serial number	项目		item	配置	disposition	备注	remark
			1	冷空调		Cold air conditioner	√	√
			2	除霜除雾		Defrost and defog	√	√	带PTC	With PTC
			3	遮阳板（驾驶座）		Sun visor (driver's seat)	√	√
			4	点烟器座		Cigarette lighter holder	√	√
			5	USB接口		USB interface	√	√
			6	车载充电机（6.6kW）		Car charger (6.6kW)	√	√	GB/T	GB/T
			7	EPS		EPS	√	√
			8	能量回馈		Energy feedback	√	√
			六、整车性能要求  Vehicle performance requirements
			类型 type	指标项		Index item	具体描述	Specific description	备注	remark
			通过性 trafficability	接近角（°）（满载）		Approach Angle (°) (full load)	29	29
				离去角（ °）（满载）		Departure Angle (°) (full load)	27	27
				最小离地间隙（满载）		Minimum ground clearance	≥180	≥180
				最小转弯直径（m）（空载）		Minimum turning diameter (m) (no load)	≤10	≤10
				轮胎型号		Tyre type	185	185
				轮胎数量		Number of tires	5	5	带备胎	Carry a spare tire
				轮辋材质		Rim material	钢质	steely	5孔	5-hole
				货厢材质		Cargo material	钢质	steely	栏板	Rail board
			车身及其配置       Body and its configuration	车身结构		Body structure	半承载式	Semi-bearing type	单排	Single row
				方向盘位置		Steering wheel position	右	right
				车身颜色		Body color	珍珠白	Pearl white	下保险杠颜色同车身一致	The lower bumper is the same color as the body
				驾驶室乘客数量		Number of passengers in the cab	2	2
				前悬架类型		Front suspension type	麦弗逊式独立悬架	Macpherson independent suspension
				后悬架类型		Rear suspension type	后钢板弹簧 6片非独立	Rear leaf spring 6 pieces are not independent
				后桥		Rear axle	刚性驱动后桥，新能源车用主减，电机安装方式：与车桥平行安装；带电机密封防护机构	Rigid drive rear axle, new energy vehicle main reduction, motor installation mode: parallel to the axle installation; With motor sealing protection mechanism	速比10.5	Speed ratio 10.5
				车门数量		Number of doors	2	2
				扬声器个数		Number of speakers	2	2
				座椅面料		Seat fabric	针织	knit
				安全带		Safety belt	三点式	Three-point form	主、副	Principal and auxiliary
				仪表		appearance	CAN总线仪表	CAN bus instrument
				中控门锁		Central lock	有	There are
			动力电池            Power battery	储能装置类型		Type of energy storage device
			参数  argument	储能装置单体电芯形式（圆柱、软包、方壳）		Energy storage device single cell form (cylinder, soft pack, square shell)
				储能装置总储电量（kWh）		Total energy storage (kWh)	磷酸铁锂41.93	Lithium iron phosphate 41.93
				储能装置总成标称电压（V）		Energy storage device assembly nominal voltage (V)
				电箱数		Number of boxes	1	1
			驱动电机 Drive motor	驱动电机额定/峰值功率(Kw)		Drive motor rated/peak power (Kw)	35/70	35/70
			参数 argument	驱动电机额定/峰值扭矩(N·m)		Drive motor rated/peak torque (N·m)
				驱动电机额定/峰值转速r/min		Rated/peak speed of drive motor r/min
				电机驱动形式		Motor drive form	后桥直驱	Rear axle direct drive
				电机防护等级		Motor protection class	IP67	IP67
				驱动电机冷却方式		Drive motor cooling mode	液冷	Liquid cooling
